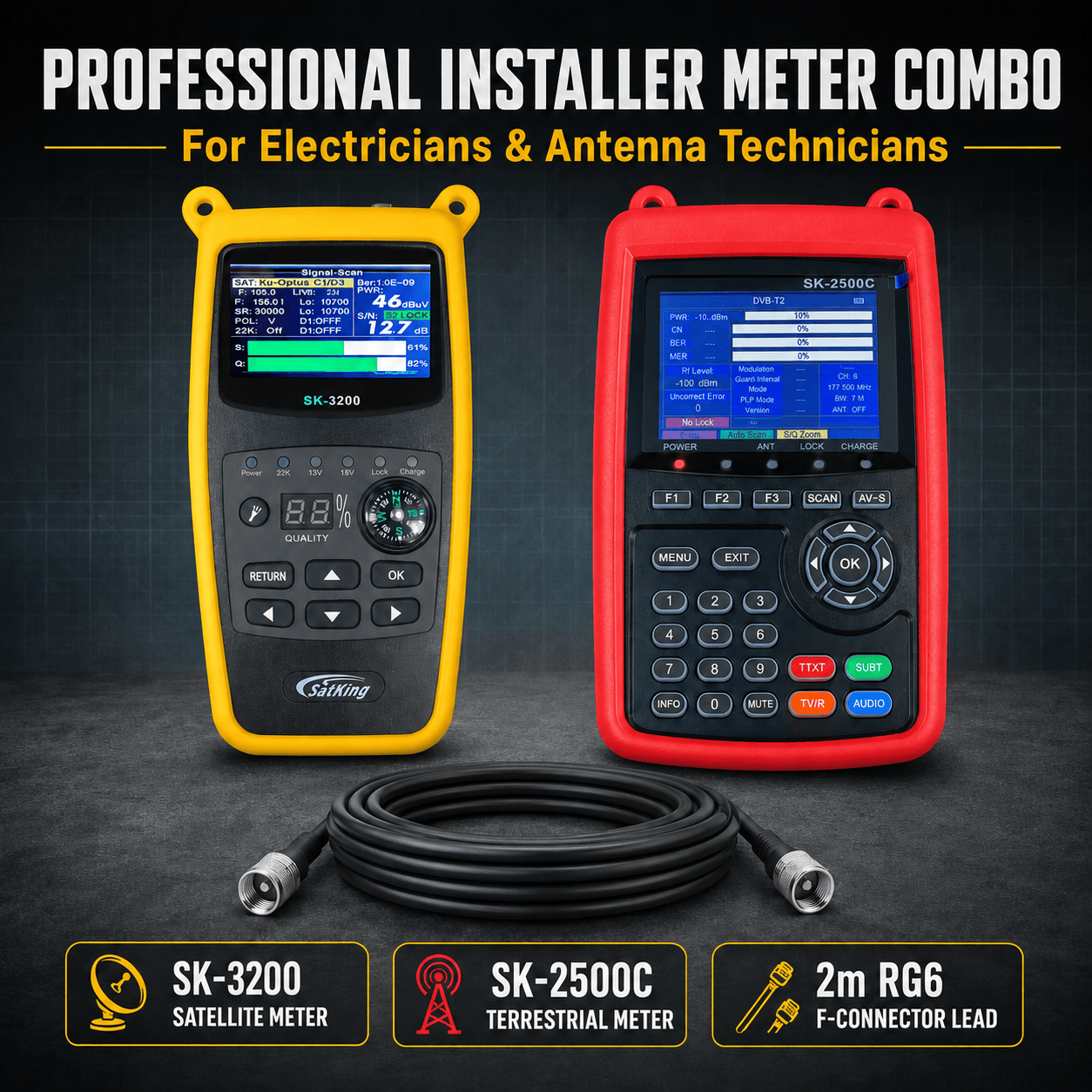

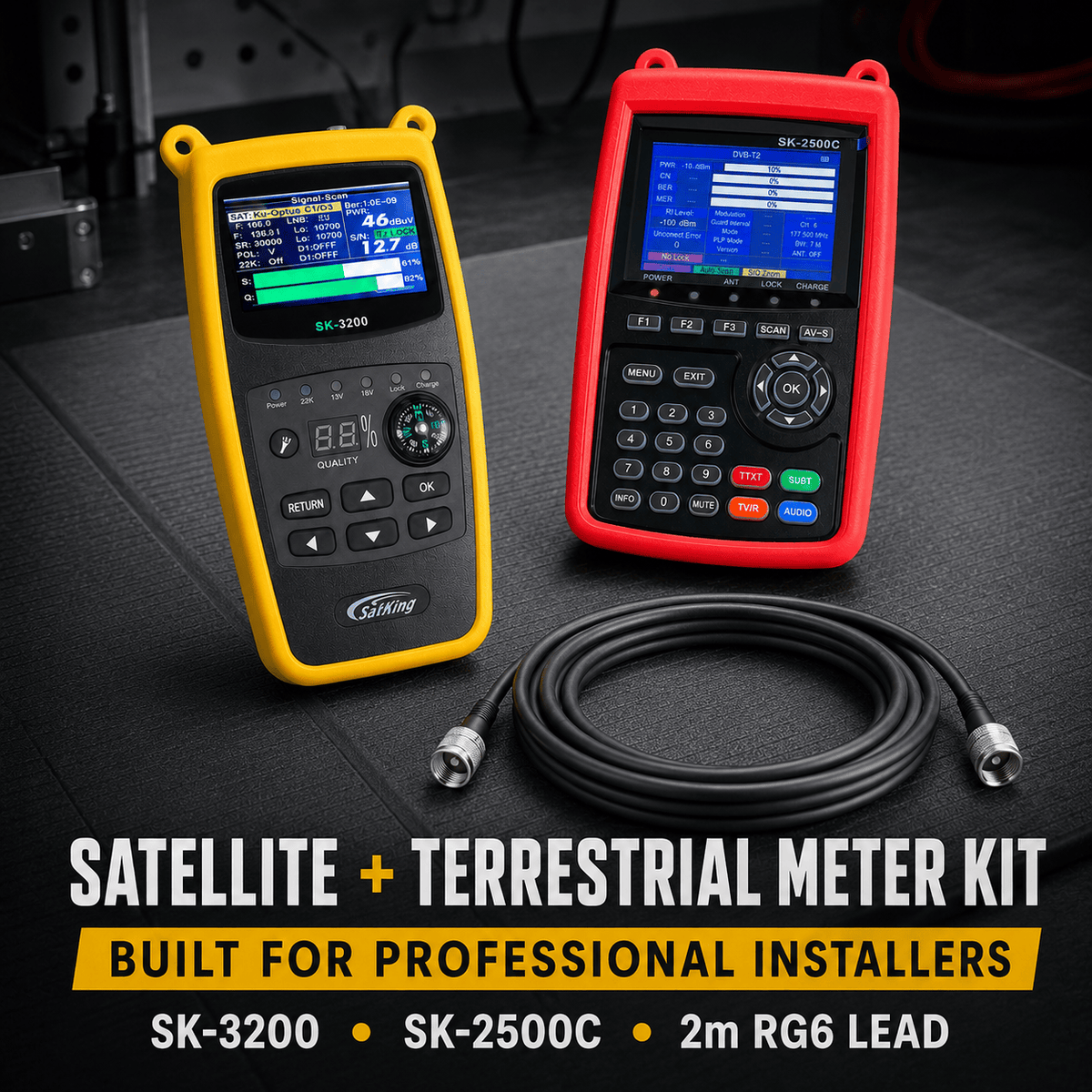

SatKing Satellite and Terrestrial TV Meter Kit
Equip yourself for satellite dish alignment and TV antenna testing with this SatKing two-meter package. The kit combines the SK-3200 satellite finder, SK-2500C terrestrial TV signal meter and a premium custom-made 2m RG6 quad-shield coaxial cable with F connectors.
A practical package for electricians, antenna installers and television technicians, it provides dedicated instruments for VAST and Foxtel satellite alignment, terrestrial antenna installation and reception troubleshooting. Both meters have rechargeable batteries for portable operation.

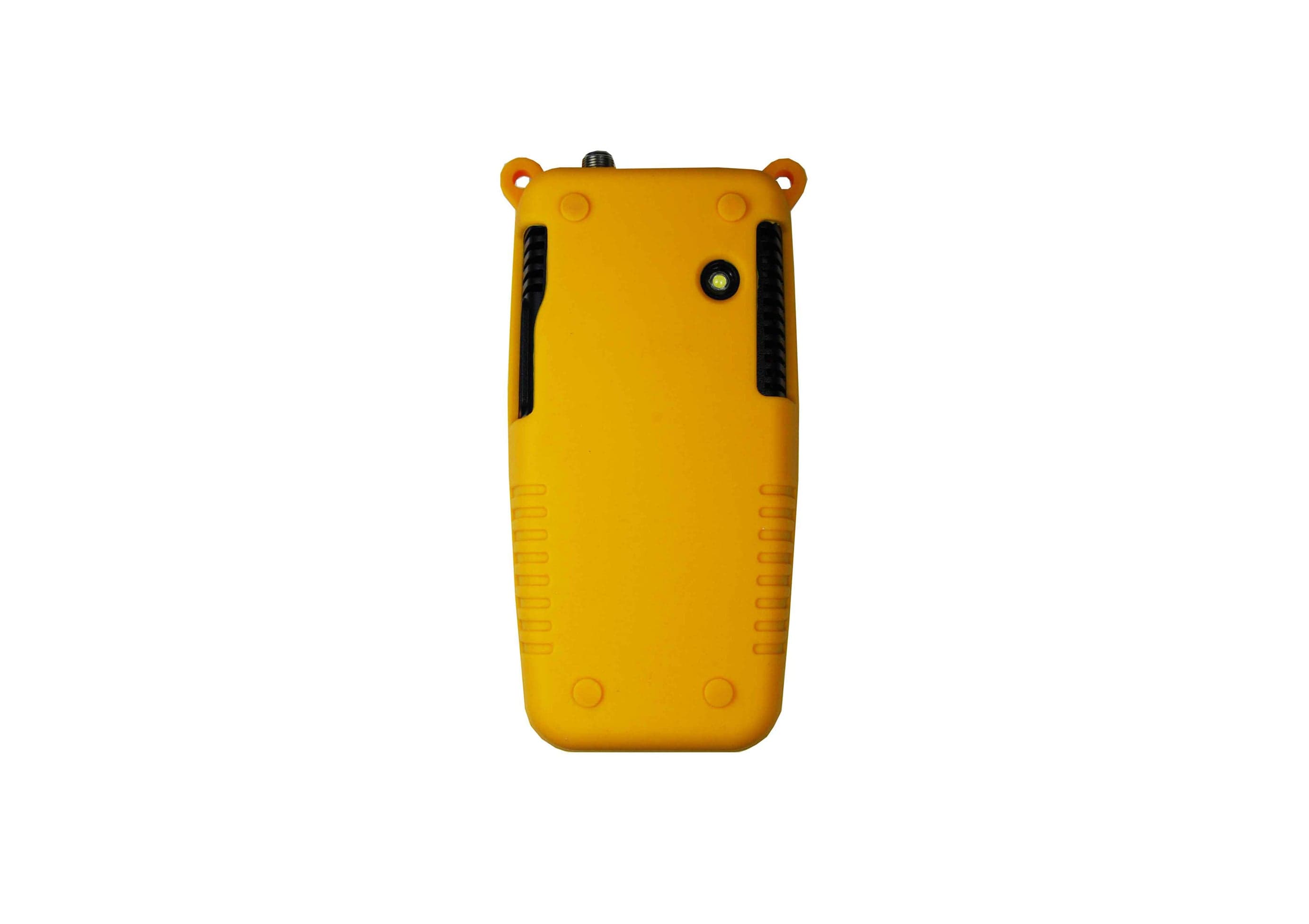

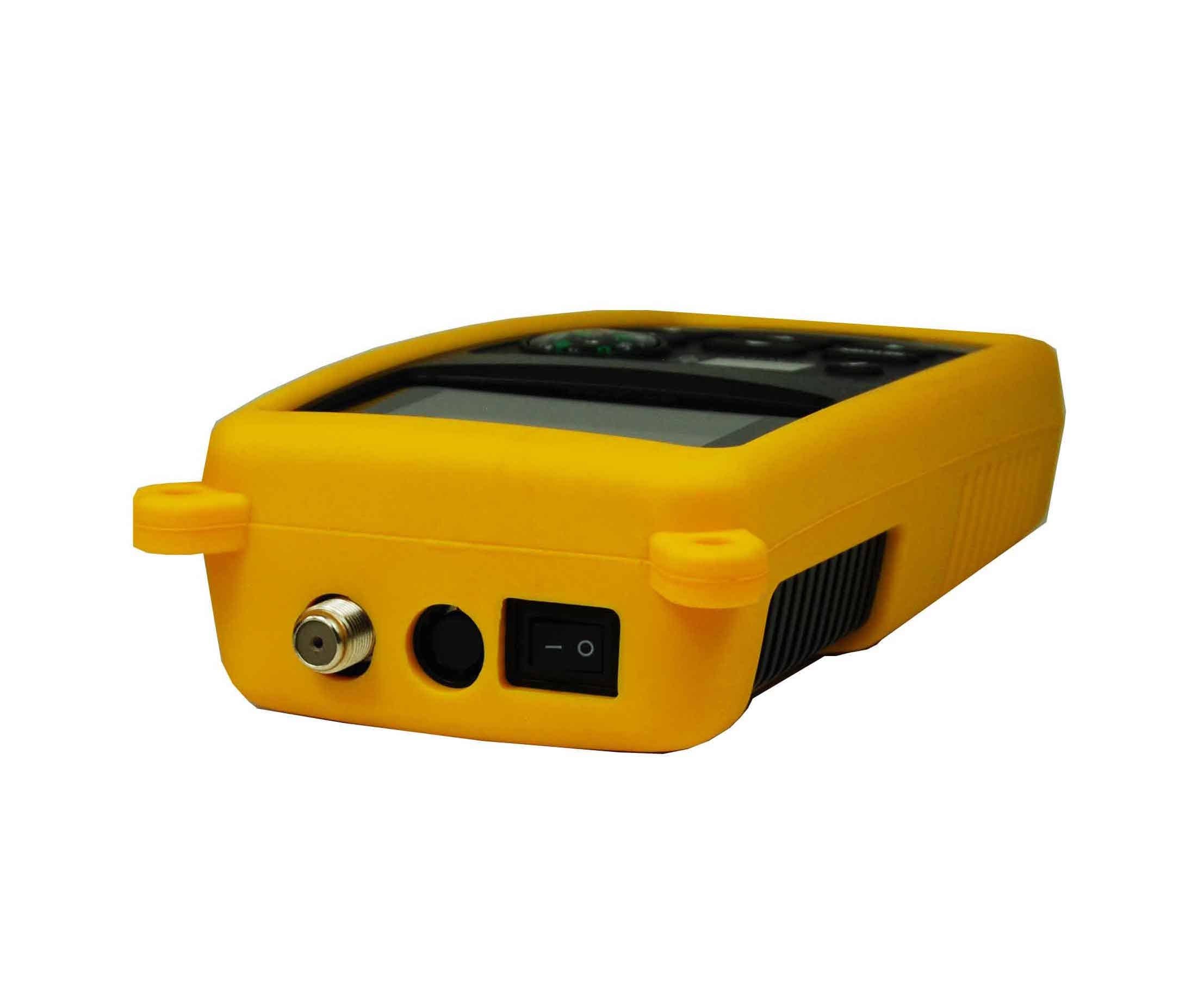

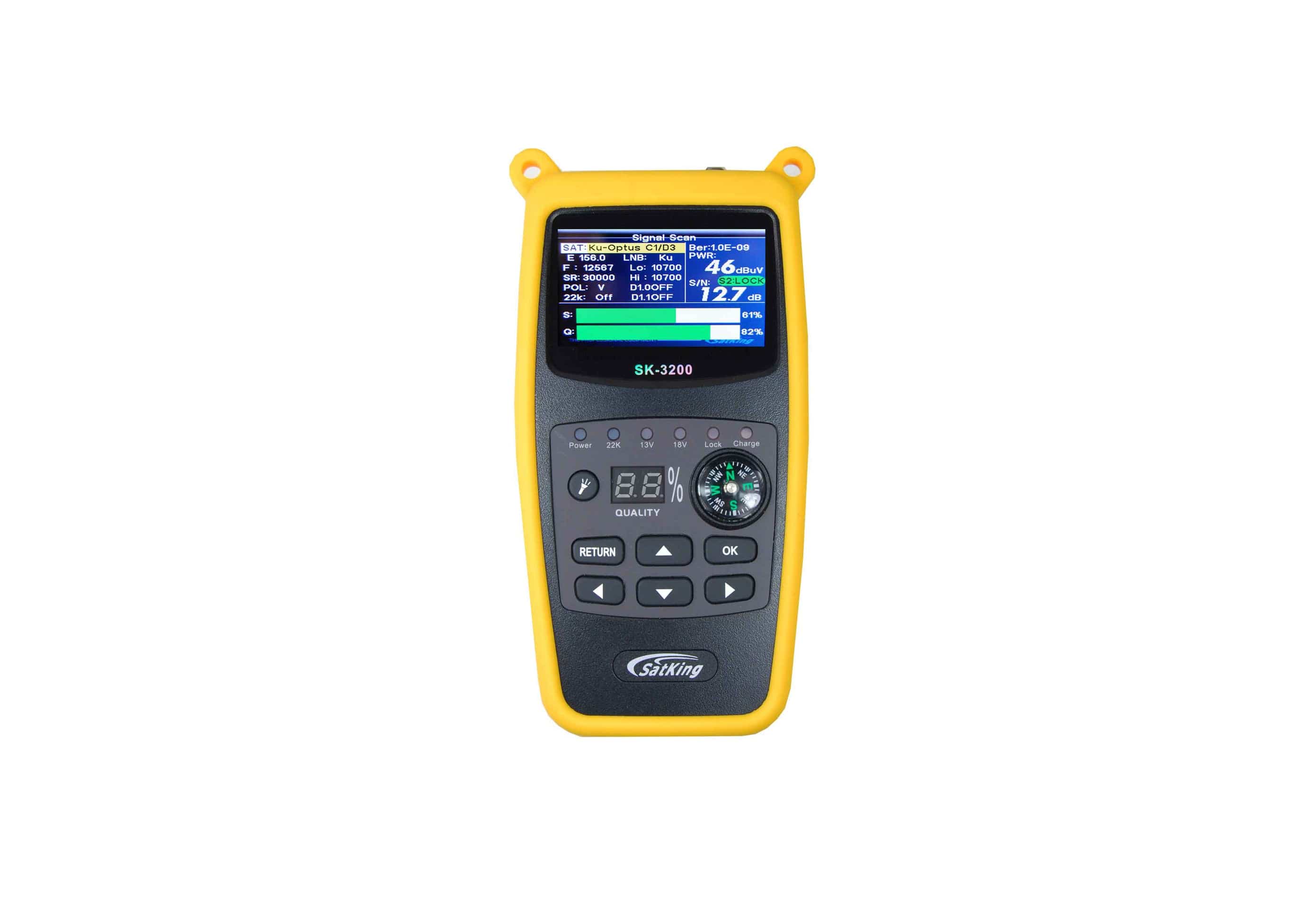

SatKing SK-3200 Satellite Finder
The SK-3200 is supplied pre-programmed for VAST and Foxtel dish alignment. Its 2.4-inch colour screen displays signal strength and quality, while the audible signal-lock beeper helps you align the dish directly at the installation point.
The built-in battery allows operation without connecting the meter to your satellite decoder. Use the included 2m coaxial cable to connect the meter to the dish LNB.
SK-3200 Features
-
2.4-inch colour LCD screen.
-

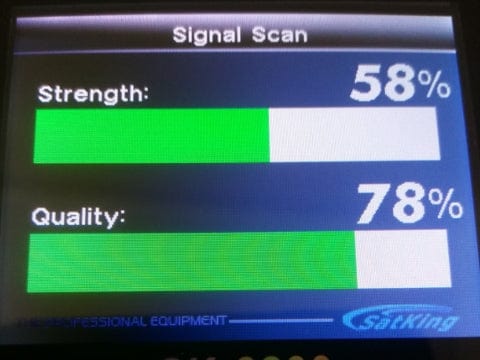

Signal strength and quality display.
-
Green signal-lock indicators and audible alignment beeper.
-
Supplied pre-programmed for VAST and Foxtel.
-
MPEG-4 support.
-
Built-in rechargeable lithium-ion battery.
-
Built-in compass and light.
-
Protective rubber sleeve.
-
Editable satellite and transponder settings.
-
USB software upgrade capability.
-
Satellite input frequency range: 950–2150MHz.

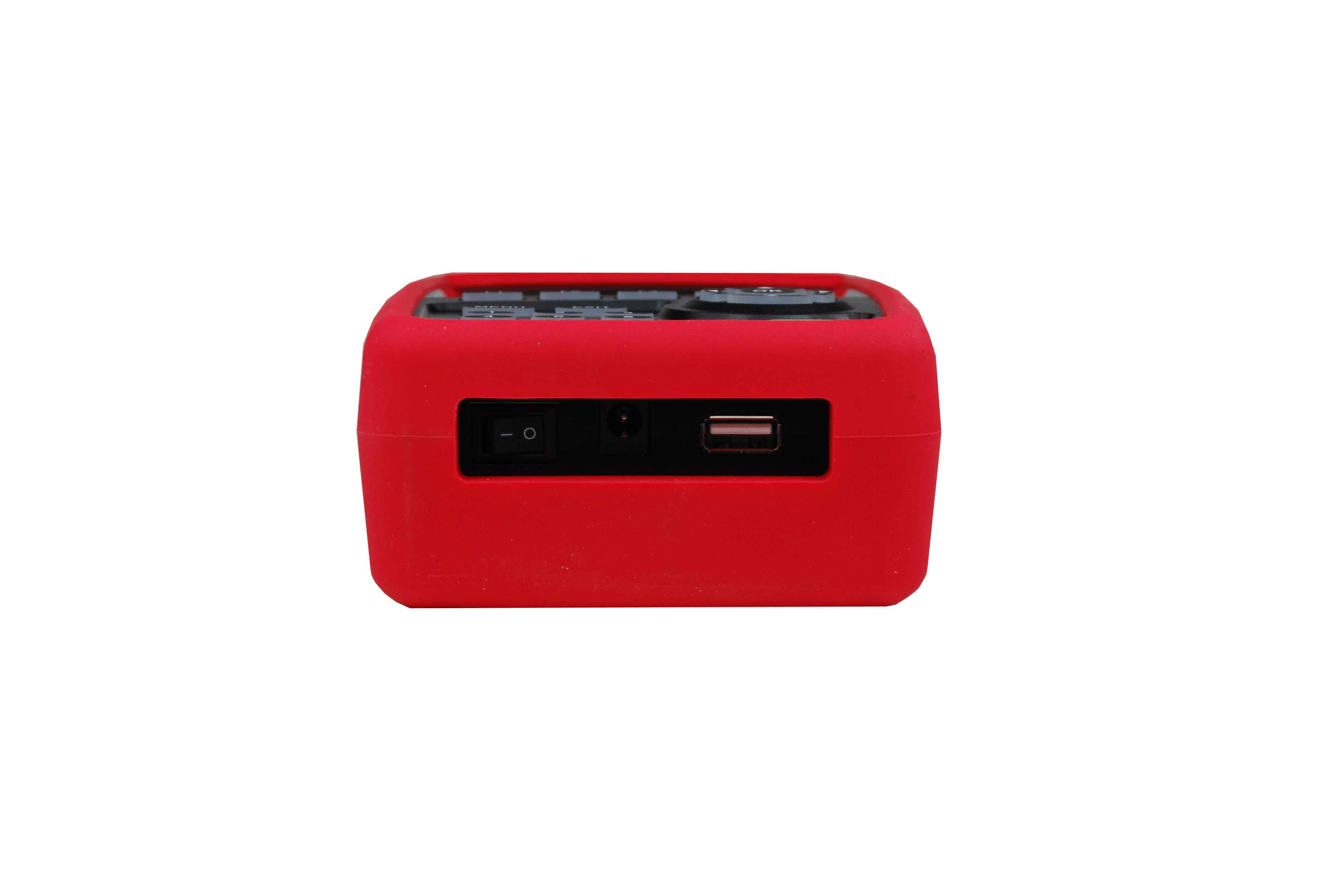

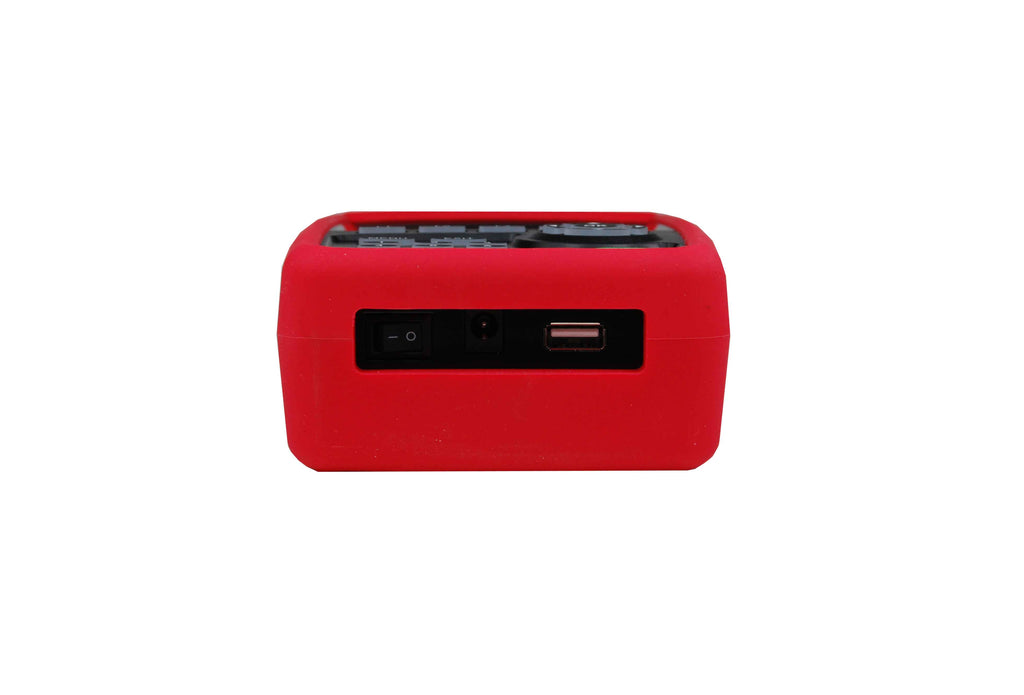

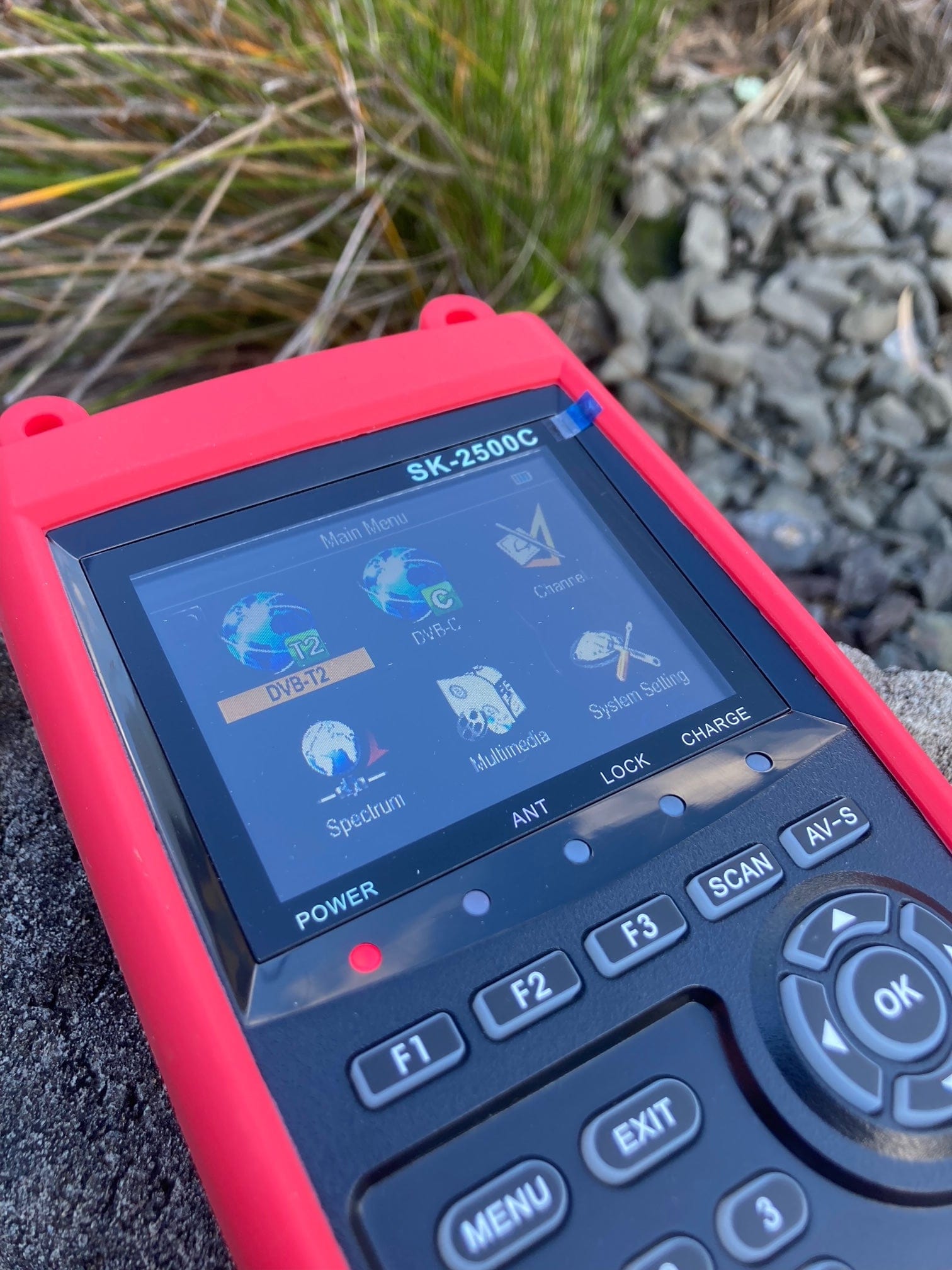

SatKing SK-2500C Terrestrial TV Signal Meter
The SK-2500C provides digital signal measurements for installing, aligning and testing TV antenna systems. Its 3.5-inch colour screen displays supported SD and HD television channels with sound, allowing you to assess reception at the antenna or outlet.
Signal strength, quality, MER, BER and carrier-to-noise readings provide detailed reception information. The spectrum analyser and multi-channel signal-level display help you examine signals across the television band.
SK-2500C Features
-
3.5-inch colour LCD screen.
-
Live SD and HD television picture and sound.
-
Signal strength, quality, MER, BER and carrier-to-noise readings.
-
Built-in spectrum analyser.
-
Multi-channel signal-level display.
-
MPEG-2 and MPEG-4 support.
-
DVB-T, DVB-T2 and DVB-C functions.
-

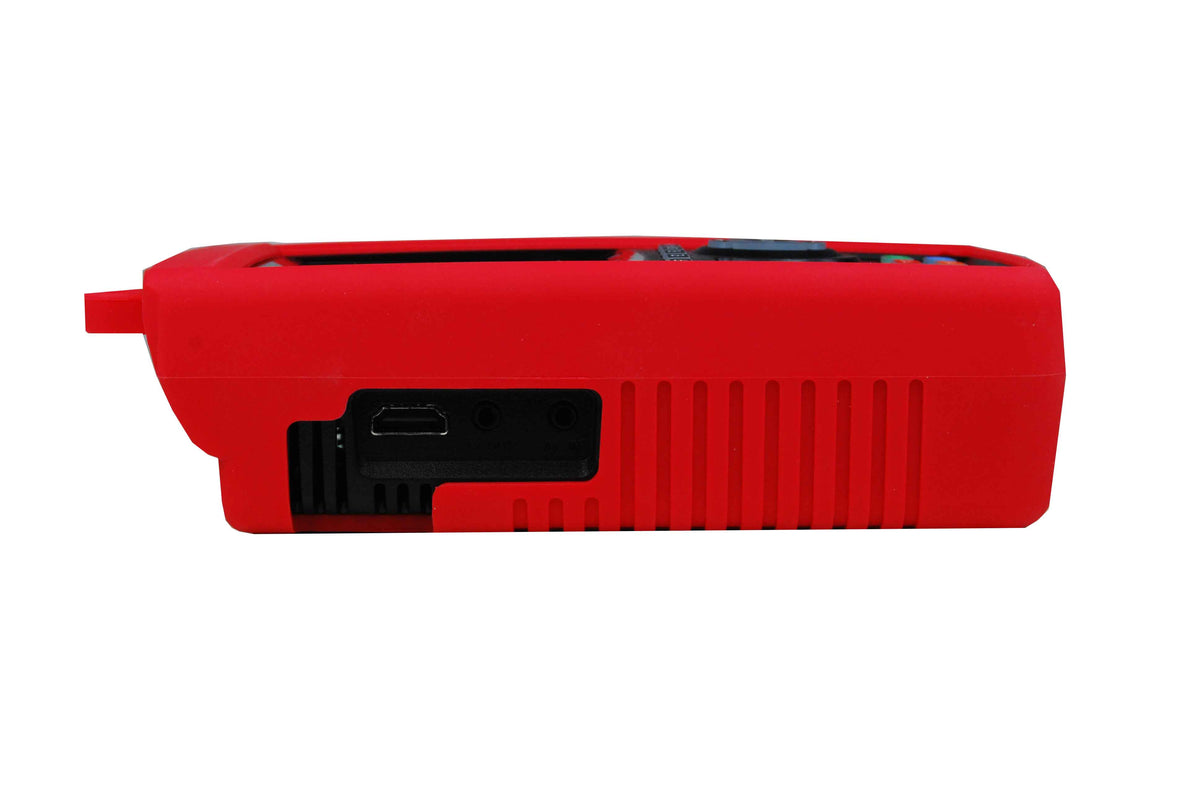

HDMI input and output.
-
AV input and output.
-
Masthead amplifier power output.
-
Built-in speaker, signal buzzer and work light.
-
Backlit controls.
-
Rechargeable 3000mAh lithium-ion battery.
-
Electronic programme guide.
-
USB media playback and software updating.
-
Published terrestrial frequency range: 177.5–816.5MHz.
The AV input supports monitoring compatible analogue CCTV camera video. HDMI connections provide additional options for monitoring compatible equipment and testing cable runs.
Premium 2m Coaxial Cable Included
The supplied custom-made RG6 quad-shield cable is fitted with F connectors at both ends. It provides a convenient connection between the SK-3200 satellite finder and the dish LNB during alignment.
Package Includes
-
1 × SatKing SK-3200 satellite finder.
-
1 × SK-3200 charger.
-
1 × SK-3200 carry strap.
-
1 × SK-3200 protective rubber sleeve.
-
1 × SK-3200 user manual.
-
1 × SatKing SK-2500C terrestrial TV meter.
-
1 × SK-2500C 240V-to-12V power pack.
-
1 × SK-2500C 12V charging cable.
-
1 × SK-2500C carry case.
-
1 × SK-2500C carry strap.
-
1 × SK-2500C AV cable.
-
1 × Premium custom-made 2m RG6 quad-shield coaxial cable with F connectors.
